Apply angle relationships formed by intersecting lines

Intersecting lines create vertical angles with equal measures and adjacent angles forming a linear pair whose measures sum to $180^\circ$ ; perpendicular lines additionally form right angles of $90^\circ$ . Learners interpret these relationships in diagrams and use numerical or simple algebraic equations to determine unknown angle measures, rather than assuming that all adjacent or nearby angles are equal. The focus is on two-dimensional line intersections, not formal geometric proof or more advanced angle theorems.

Detailed Explanation: Apply angle relationships formed by intersecting lines

When two lines intersect, use the positions of the angles:

Vertical angles are opposite each other, so they have equal measures.
Adjacent angles share a side. If their other sides form a straight line, they are a linear pair, so their measures add to $180^\circ$ .
If the lines are perpendicular, each angle is a right angle, or $90^\circ$ .

Example

Two lines intersect at point $O$ . One angle measures $70^\circ$ . The angle next to it is labeled $x+20^\circ$ . Find $x$ and the measures of all four angles.

The $70^\circ$ angle and the $(x+20)^\circ$ angle are adjacent and form a linear pair. Therefore,

70+(x+20)=180

Combine like terms:

x+90=180

Subtract $90$ from both sides:

x=90

Now find the angle labeled $x+20$ :

x+20=90+20=110^\circ

The two angles are $70^\circ$ and $110^\circ$ . Their vertical angles have the same measures:

The angle opposite $70^\circ$ is also $70^\circ$ .
The angle opposite $110^\circ$ is also $110^\circ$ .

So the four angles are

70^\circ,\ 110^\circ,\ 70^\circ,\ 110^\circ.

Remember: opposite angles are equal, but adjacent angles are usually not equal; adjacent angles in a linear pair add to $180^\circ$ .

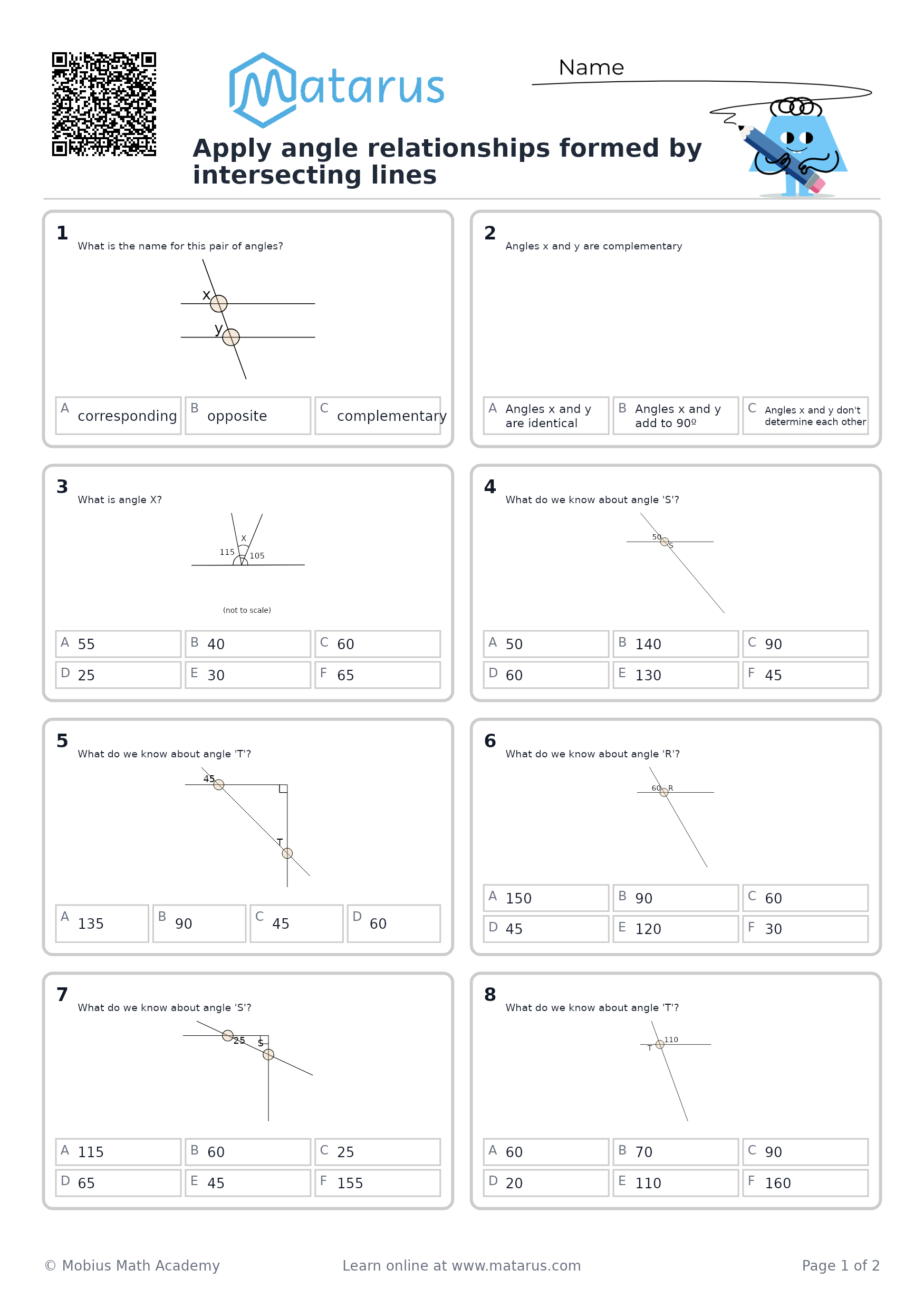

Learn by doing: Apply angle relationships formed by intersecting lines
