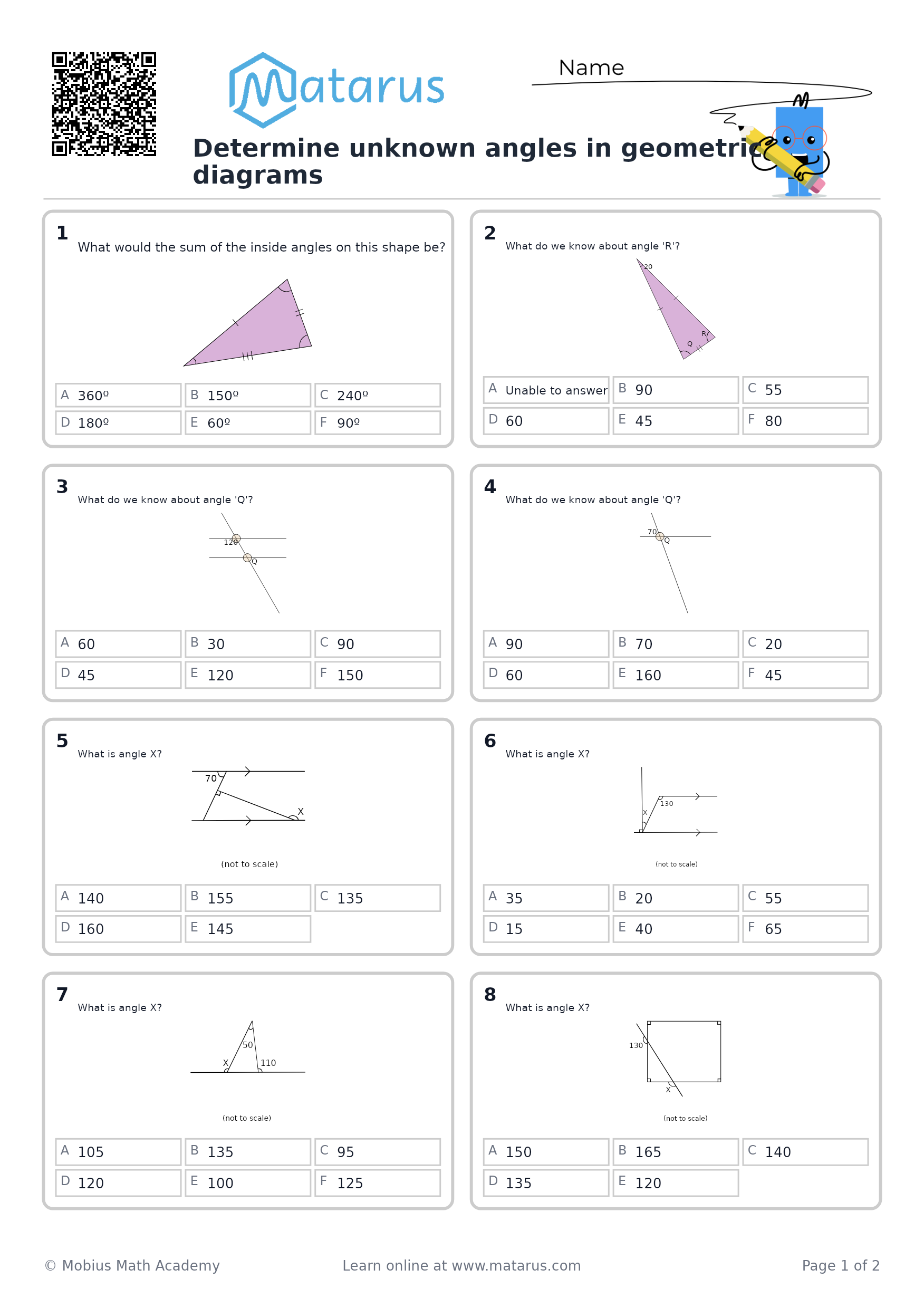

Determine unknown angles in geometric diagrams

Determining unknown angles involves interpreting geometric diagrams and applying angle relationships, including vertically opposite angles, linear pairs, angles around a point, parallel-line angle relationships, triangle and quadrilateral angle sums, and exterior angles. The reasoning connects marked and unmarked angles through equalities and sums, often representing the relationships with simple equations rather than relying on a diagram being drawn to scale. This scope excludes trigonometric methods, formal circle theorems, and more advanced generalized polygon or proof treatments.

Detailed Explanation: Determine unknown angles in geometric diagrams

To determine an unknown angle, look for a relationship that connects it to angles you already know. Common relationships include:

Angles on a straight line add to $180^\circ$ .
Angles in a triangle add to $180^\circ$ .
Vertically opposite angles are equal.
Angles around a point add to $360^\circ$ .

Worked example

Triangle $ABC$ has $\angle A=52^\circ$ . Side $BC$ is extended past $C$ to point $D$ , and the exterior angle $\angle ACD=128^\circ$ . Find $x=\angle B$ .

Step 1: Find the interior angle at $C$

The exterior angle $\angle ACD$ and the interior angle $\angle ACB$ form a linear pair, so they add to $180^\circ$ :

\angle ACB+128^\circ=180^\circ

\angle ACB=180^\circ-128^\circ=52^\circ

Step 2: Use the angle sum of a triangle

The three angles in a triangle add to $180^\circ$ :

52^\circ+52^\circ+x=180^\circ

x=180^\circ-104^\circ=76^\circ

Therefore,

\boxed{x=76^\circ}

Always write the angle relationship you are using before calculating. This helps you choose the correct equation even when the diagram is not drawn to scale.
