Estimate instantaneous rate of change graphically

Instantaneous rate of change at a point is interpreted graphically as the slope of the tangent line, estimated from the slopes of secant lines through nearby points; its sign and units describe the direction and rate of change of the dependent quantity. This understanding distinguishes instantaneous from average rate of change and identifies situations such as corners, cusps, discontinuities, or vertical tangents where a single finite rate may not exist, without requiring formal limit proofs or more advanced derivative theory.

Detailed Explanation: Estimate instantaneous rate of change graphically

At a point on a graph, the instantaneous rate of change is the slope of the line that just touches the graph there. This line is called the tangent line.

Because a graph usually does not give us exact coordinates for every nearby point, we estimate the tangent slope using secant lines. A secant line connects two points on the graph:

\text{average rate of change}=\frac{\Delta y}{\Delta x} =\frac{y_2-y_1}{x_2-x_1}.

As the two points are chosen closer and closer to the point of interest, the secant slopes give a better estimate of the instantaneous rate of change.

Worked example

Suppose a graph shows the distance $s$ traveled by a car, in meters, at time $t$ , in seconds. Estimate the instantaneous rate of change of distance at $t=2$ seconds.

From the graph, read these nearby points:

At $t=1.8$ , $s\approx 3.24$ m
At $t=2$ , $s\approx 4.00$ m
At $t=2.2$ , $s\approx 4.84$ m

Step 1: Choose a point just before and just after $t=2$

Use the points at $t=1.8$ and $t=2.2$ . The secant line through them has slope

\frac{4.84-3.24}{2.2-1.8} = \frac{1.60}{0.40} = 4.

Step 2: Interpret the slope

The estimated instantaneous rate of change at $t=2$ is

\boxed{4\text{ m/s}}.

This means that at about $2$ seconds, the car’s distance is increasing at approximately $4$ meters per second.

The positive sign means the distance is increasing. If the slope had been negative, the distance would have been decreasing.

Remember

A secant slope gives the average rate of change over an interval.
A tangent slope estimates the instantaneous rate of change at one point.
Use points very close to the point of interest to estimate the tangent slope.
Include units in your answer.
At a sharp corner, cusp, jump, or vertical tangent, there may not be one finite instantaneous rate of change.

Learn by doing: Estimate instantaneous rate of change graphically

Click a topic below to practice the foundational skills you'll need, learn the steps, or master this skill

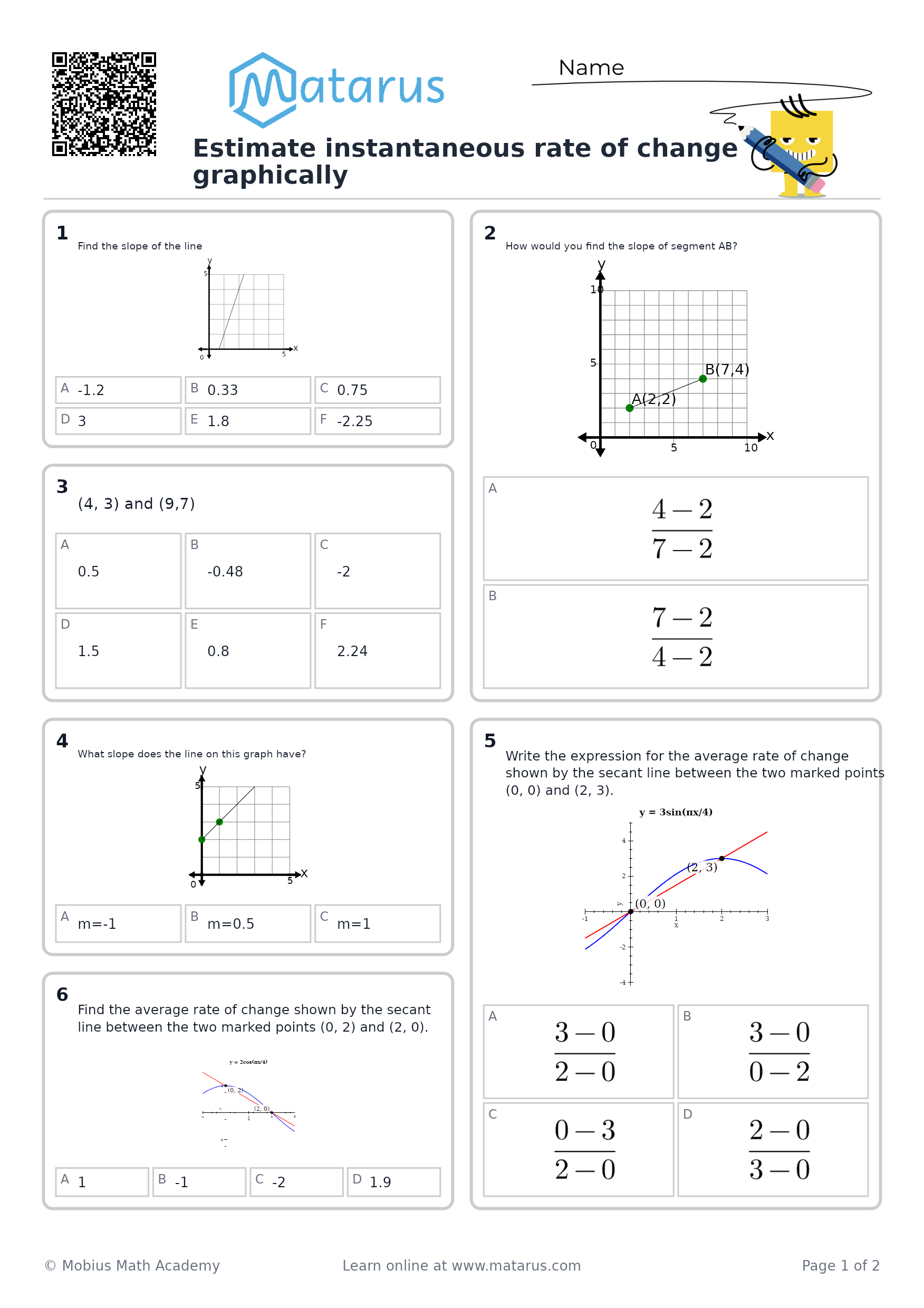

Practice with unlimited practice problems
