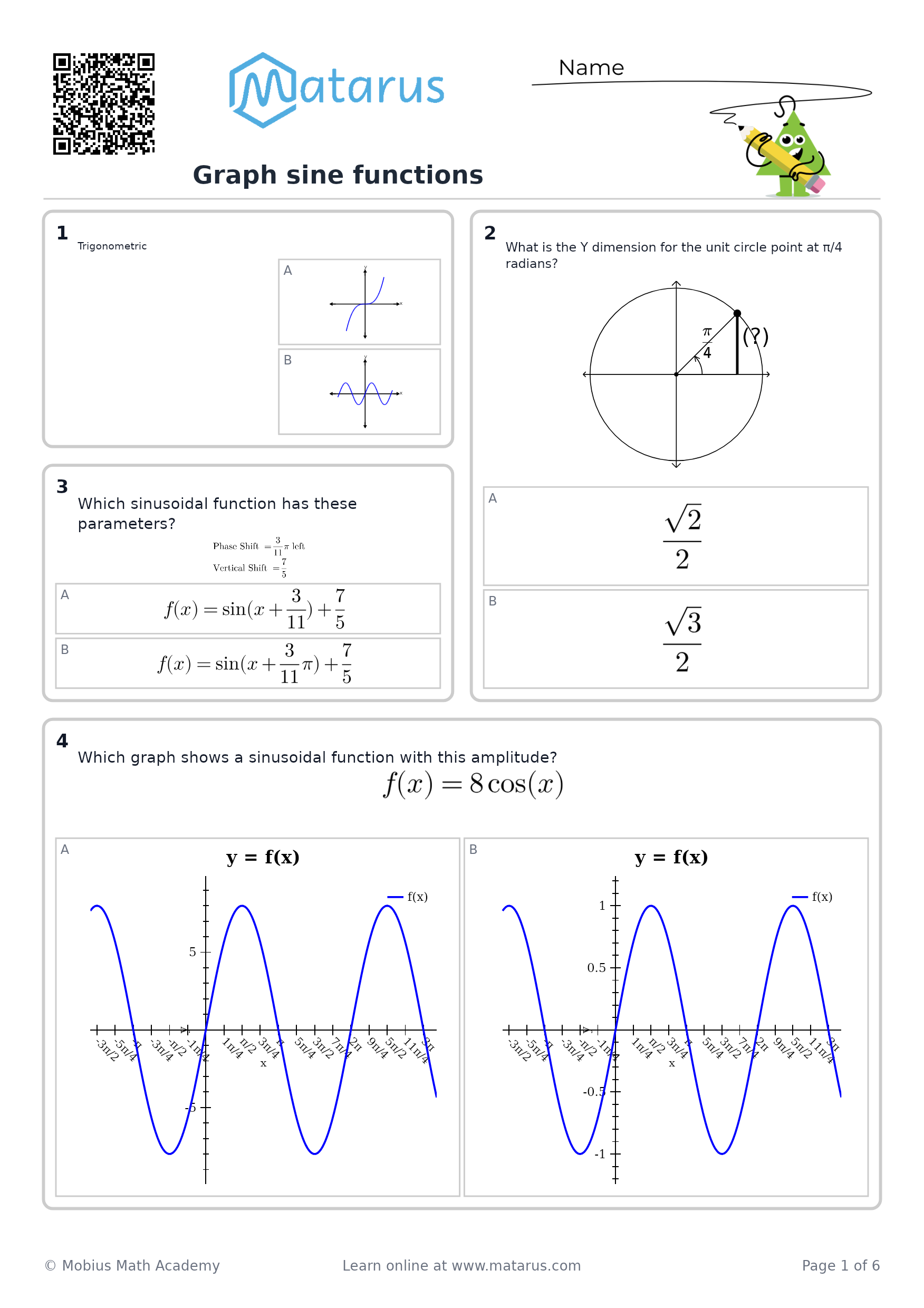

Graph sine functions

Graphing sine functions means interpreting equations such as $y=a\sin(b(x-h))+d$ through their amplitude $|a|$ , period $2\pi/|b|$ , horizontal shift $h$ , and midline $y=d$ , then representing the resulting cycles and range accurately. Key points, zeros, maxima, and minima are located using radians or degrees, with attention to the fact that transformations can change where a cycle begins and that the graph need not pass through the origin. The focus is on transformed sinusoidal graphs, not inverse trigonometric functions, Fourier analysis, or parametric representations.

Detailed Explanation: Graph sine functions

To graph a sine function, rewrite it in the form

y=a\sin\bigl(b(x-h)\bigr)+d.

Identify these features:

Amplitude: $\vert a \vert$ , the distance from the midline to a maximum or minimum
Period: $\dfrac{2\pi}{ \vert b \vert }$ , the length of one complete cycle
Horizontal shift: $h$
Midline: $y=d$
Range: from $d- \vert a \vert$ to $d+ \vert a \vert$

Then plot five key points for one cycle: the starting point, maximum, midline, minimum, and ending point.

Example

Graph

y=2\sin\left(x-\frac{\pi}{3}\right)+1.

1. Identify the transformations

Compare the equation with

y=a\sin\bigl(b(x-h)\bigr)+d.

Here,

a=2,\qquad b=1,\qquad h=\frac{\pi}{3},\qquad d=1.

Therefore:

Amplitude: $\vert 2 \vert =2$
Period:

\frac{2\pi}{ \vert 1 \vert }=2\pi

Horizontal shift: right $\dfrac{\pi}{3}$
Midline: $y=1$

The graph’s highest and lowest values are

1+2=3 \qquad\text{and}\qquad 1-2=-1.

So the range is

-1\le y\le 3.

2. Divide the period into four equal parts

One period is $2\pi$ , so each quarter-period is

\frac{2\pi}{4}=\frac{\pi}{2}.

The cycle begins at the horizontal shift, $x=\dfrac{\pi}{3}$ . Add $\dfrac{\pi}{2}$ each time:

\begin{array}{c|c} x & y \\ \hline \dfrac{\pi}{3} & 1 \\ \dfrac{\pi}{3}+\dfrac{\pi}{2}=\dfrac{5\pi}{6} & 3 \\ \dfrac{\pi}{3}+\pi=\dfrac{4\pi}{3} & 1 \\ \dfrac{\pi}{3}+\dfrac{3\pi}{2}=\dfrac{11\pi}{6} & -1 \\ \dfrac{\pi}{3}+2\pi=\dfrac{7\pi}{3} & 1 \end{array}

Because the coefficient $a=2$ is positive, the graph starts on the midline and rises to its maximum.

3. Plot and connect the points

Plot the five points

\left(\frac{\pi}{3},1\right),\quad \left(\frac{5\pi}{6},3\right),\quad \left(\frac{4\pi}{3},1\right),\quad \left(\frac{11\pi}{6},-1\right),\quad \left(\frac{7\pi}{3},1\right).

Connect them with a smooth sine curve, then repeat the pattern in both directions.

The graph oscillates around the midline $y=1$ , reaches a maximum of $3$ , a minimum of $-1$ , and completes one cycle from $x=\dfrac{\pi}{3}$ to $x=\dfrac{7\pi}{3}$ .
